LevelMeter

Modular alarm and monitoring system designed for advanced supervision of vessels — from tank levels to critical equipment control.

Descargar PDF (ES) Download PDF (EN)
What It Does

Modular Alarm & Monitoring System

Safety device designed for advanced monitoring of digital/analog inputs and control of critical equipment on vessels.

Level Monitoring

Precise control of water, fuel and waste tank levels with clear visualization and configurable alarms.

Equipment Control

Automated management of pumps, ventilation and valves for optimal operation of vessel systems.

NMEA Integration

Connection with navigation systems for centralized management of all vessel technical data.

Interface

Tank Monitoring

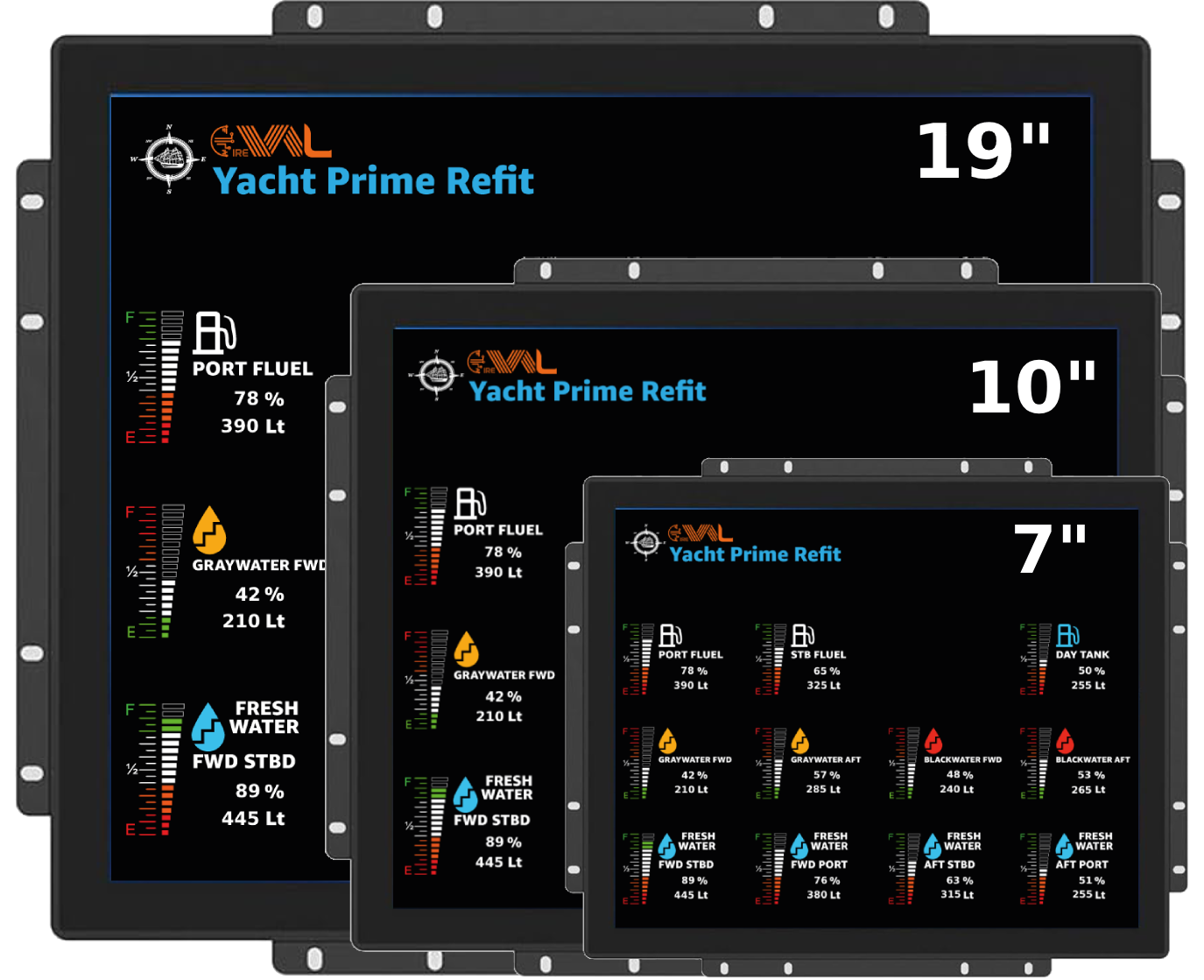

LevelMeter screens showing tank levels
Intuitive interface with real-time level visualization
Customizable

Intuitive & Adaptable Interface

7", 10" or 19" (optional) color touch screen with clear alarm visualization and quick controls. Configuration adaptable to each vessel's specific needs.

  • Clear visualization of all tanks simultaneously
  • Configurable level alerts and thresholds
  • Consumption history and trend graphs
  • Seamless integration with navigation systems
Technical Data

Technical Specifications

Dimensions & Consumption

Component Dimensions (mm) Weight Consumption (24VDC)
7" Display 176 × 135 × 29 1.0 kg 0.3 A
10" Display 261 × 180 × 38 1.5 kg 0.5 A
19" Display 482 × 307 × 60 4.5 kg 1.2 A
CPU 168 × 133 × 40 0.5 kg 0.2 A
Modules (8XX) 51.5 × 133 × 33 0.2 kg 0.1 A – 0.5 A

Advanced Features

Dual Power Supply

Support for main and emergency power source (9–32VDC) for maximum reliability.

Integrated Communication

RS485 protocols for connection with external equipment and navigation systems.

Modularity

Up to 64 inputs/outputs with interchangeable modules:

  • CPU: Central processor with 8 digital inputs + 2 RS485 ports
  • 8 INPUT: 8 analog inputs (0–10VDC / 4–20mA)
  • 8 OUTPUT: 8 digital outputs (1A@24VDC)
Use Cases

Typical Applications

Bilge Alarms

Early detection of water in bilge with automatic pump activation.

Fuel Monitoring

Precise control of fuel levels and consumption in real time.

Ventilation Control

Automation of ventilation systems according to environmental conditions.

Electrical Management

Monitoring and control of critical electrical systems aboard.

Operating Conditions

Operating temp: +5°C to 55°C
Storage temp: -0°C to 70°C
Display mounting: Flush console
Module mounting: DIN rail
